Remache 4 patas
 |
 |
|
צ Êý |
ÂÝ ÎÆ
|

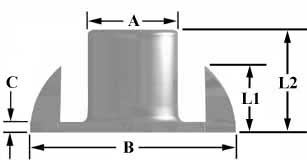

A(mm)
|
B(mm)
|
C(mm)
|
L1(mm)
|
L2(mm)
|
|
4
|
3/8"
|
11.2
|
25
|
1.4
|
8.4
|
12.7
|
|
4
|
3/8"
|
11.2
|
25
|
1.4
|
8.4
|
12.0
|
|
4
|
M10
|
11.5
|
25
|
1.4
|
8.4
|
12.2
|
|
4
|
5/16"
|
9.6
|
22
|
1.4
|
7.5
|
15.8
|
|
4
|
5/16"
|
9.2
|
22
|
1.1
|
7.5
|
10.0
|
|
4
|
M8
|
9.3
|
22
|
1.1
|
7.5
|
10.0
|
|
4
|
1/4"
|
7.8
|
19
|
1.1
|
6.5
|
12.1
|
|
4
|
1/4"
|
7.8
|
19
|
1.1
|
6.8
|
10.0
|
|
4
|
1/4"
|
7.8
|
19
|
1.1
|
6.8
|
8.8
|
|
3
|
1/4"
|
7.8
|
19
|
1.1
|
7.0
|
8.1
|
|
4
|
1/4"
|
8.0
|
18
|
1.2
|
7.4
|
14.1
|
|
4
|
1/4"
|
7.8
|
18
|
1.0
|
6.8
|
9.8
|
|
4
|
M6
|
7.8
|
18
|
1.2
|
6.8
|
14.7
|
|
4
|
M6
|
7.5
|
18
|
1.0
|
6.8
|
9.8
|
|
3
|
M5
|
6.7
|
19
|
1.1
|
7.0
|
8.1
|
|
4
|
M5
|
6.0
|
15
|
1.0
|
5.5
|
8.0
|
|
4
|
M4
|
5.4
|
15
|
1.0
|
5.5
|
8.0
|
